The AmeriWorx Collections
Information
Cleaning and LEED information
“Our facility guy wasn’t overly excited with the decision of going with the tile over the epoxy floor but now that he has had a chance to work with it, he is glad we went with the tile. We worked with our cleaning crew and have worked out a cleaning/polishing process that really shows off the floor. It was a pleasure working with you on the project.”
John Hare, Director of Facilities and Configuration Management, EIT LLC
Like AmeriWorx Solid Vinyl Tile (SVT) AmeriWorx ROX SVT is 100% American made. Precision-milled in line, each tile is perfectly square and dimensionally stable, for easy installation with no ugly gaps between the seams. Installed using Statbond pressure-sensitive adhesive, AmeriWorx tile handles traffic immediately, with no downtime for setting or drying.
Because we sell AmeriWorx SVT direct to the contractor – with no multi-tiered distribution – there’s no extra markup, making AmeriWorx ESD vinyl tile competitively priced.
AmeriWorx ESD tile meets all parameters of ANSI/ESD S20.20 for static-control – and both ESD and material performance are guaranteed for the life of your floor.
Like AmeriWorx Solid Vinyl Tile (SVT) AmeriWorx ROX SVT is 100% American made. Precision-milled in line, each tile is perfectly square and dimensionally stable, for easy installation with no ugly gaps between the seams. Installed using Statbond pressure-sensitive adhesive, AmeriWorx tile handles traffic immediately, with no downtime for setting or drying.
Because we sell AmeriWorx SVT direct to the contractor – with no multi-tiered distribution – there’s no extra markup, making AmeriWorx ESD vinyl tile competitively priced.
AmeriWorx ESD tile meets all parameters of ANSI/ESD S20.20 for static-control – and both ESD and material performance are guaranteed for the life of your floor.
All AmeriWorx tiles can be installed with StatBond pressure sensitive adhesive, eliminating problems associated with wet-set graphite and carbon-loaded adhesives. For cleaner, faster installation. (Can be steam-welded if desired.)
Lifetime warranty. No heavy metals. Precision milled processing for perfectly square tiles—enabling fast, gap-free installations. Color runs the full thickness of tile. Handles heavy loads—2500 psi. No wax required.

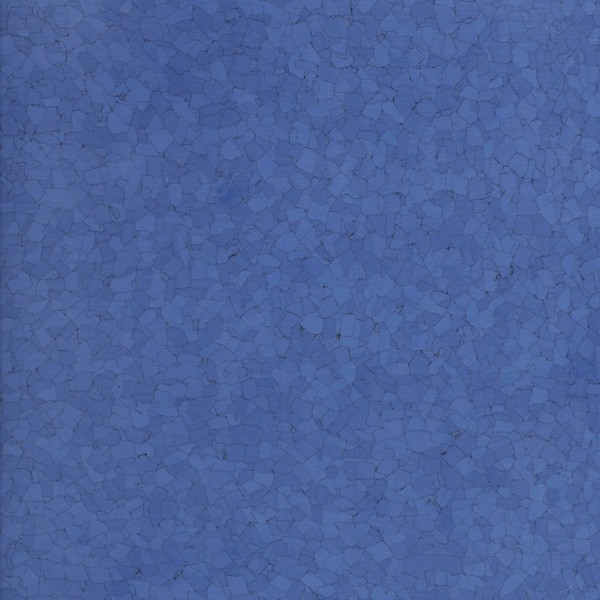

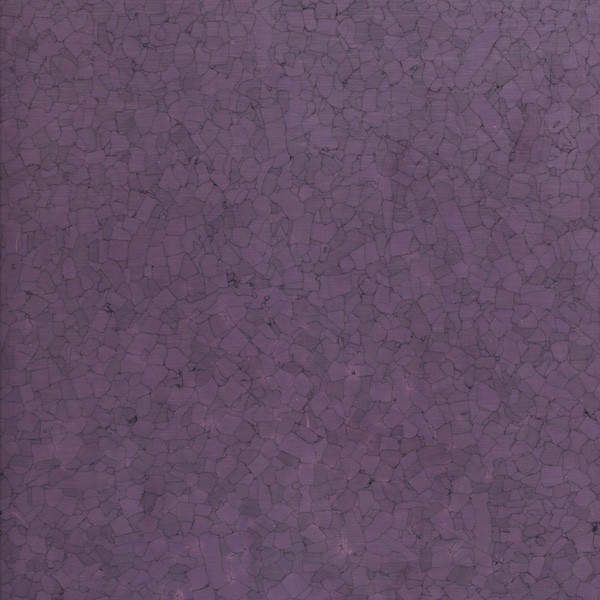

Meets all the same parameters as our regular AmeriWorx vinyl tile in styles and colors inspired by nature.
Composition | Precision milled vinyl tile of high density resin with a conductive carbon matrix. Pre-consumer recycled content > 10%. |
Electrical Performance | Lifetime Warranty |
Free from defects in workmanship and materials | Lifetime Warranty |
Sizes | 12” x 12” (24” x 24”, 36″ x 36″ available as custom sizes) |
Maintenance | No wax |
Adhesive and Spread Rate | Covers approx. 180 – 220 sq. ft/gal |
Gauge | 3.0 mm |
Grounding Material (Supplied with order) | One 2”x 24” copper strip installed every 1,000 ft |
Trowel Sizes | 1.6 x 1.6 mm (1/16”x 1/16”) Square Notch with 1.6 mm (1/16”) Flats |
Category | Test Method | Results |
---|---|---|
Critical Radiant flux CRF (W/cm2) | ASTM E-648 | > 1.0 W/cm2 |
Chemical Resistance | ASTM F-925 | Excellent (Acids, Alkalis, Household Chemicals) |
Electrical Resistance | ASTM F-150 | Point to Point & Point to Ground: 50,000 – 1,000,000 ohms Dissipative: 1,000,000 – < 1,000,000,000 ohms |
Electrostatic Propensity | AATCC-134 | <12 volts |
Fire Resistance (Steiner Tunnel) | ASTM E-84 | < 75 (Class 1) |
Electrically Conductive Floor Coverings | ANSI/UL 779 | Meets UL Standard |
Floor Materials – Resistive Characterization of Materials | ANSI/ESD.S7.1 Conductive: <1.0 x 10E6 Dissipative: ≥ 1.0 x 10E6 and < 1.0 x 10E9 | Surpasses recommended standards of ANSI/ESD S20.20 |
Floor Materials and Footwear- Resistance Measurement in Combination with a Person | ANSI/ESD STM97.1 < 3.5 X 10E7 | Surpasses recommended standards of ANSI/ESD S20.20 |
Floor Materials and Footwear- Voltage Measurement in Combination with a Person | ANSI/ESD STM97.2 <25 volts with conductive footwear | Surpasses recommended standards of ANSI/ESD S20.20 |
Life Safety Code | NFPA 101 | Passes |
Smoke Density | ASTM E-662 | ≤ 450 |
Solid Vinyl Floor Covering Materials | ASTM F-1700 | Conforms |
Standard for Health Care Facilities | NFPA 99 | Passes |
Static Decay, Method 4046 at 15% RH | ASTM F-101C | 5000 – 0 Volts in <0.01 sec. |
Static Load | ASTM F-970 | < 0.001" RI @ 250 psi (1.125″ diameter foot) 0.005″ RI @ 2,500 psi (0.5″ diameter foot) |
FloorScore certified, AmeriWorx vinyl tile contains no measurable VOCs, and meets California 1350 indoor air quality certification.
We’re often asked if precision milling really is necessary. If aesthetics are important, if your project requires a clean, tight, gap-free installation—then the answer is yes. Find out why.
StaticWorx developed StatBond pressure-sensitive permanent adhesive to replace wet set adhesives. StatBond eliminates messy installations. Unlike wet-set epoxies and conductive one-part acrylic emulsions, StatBond is allowed to dry completely before tiles are installed.
Learn more about StatBond and the benefits of using this pressure-sensitive permanent adhesive.
We’re often asked if precision milling really is necessary. If aesthetics are important, if your project requires a clean, tight, gap-free installation—then the answer is yes. Find out why.
StaticWorx developed StatBond pressure-sensitive permanent adhesive to replace wet set adhesives. StatBond eliminates messy installations. Unlike wet-set epoxies and conductive one-part acrylic emulsions, StatBond is allowed to dry completely before tiles are installed.
Learn more about StatBond and the benefits of using this pressure-sensitive permanent adhesive.
StaticWorx does not sell through multi-tier flooring distributors so your contractor will always pay the lowest possible material cost in the market.
The form below will help us better understand your needs and get you as quickly as possible to the right person. We look forward to helping you solve your static problem!
You can expect a response within 24 hours. For faster service, please give us a call: 617-923-2000
"*" indicates required fields
Visit our privacy policy to find out how we process data.
StaticWorx high-performance static-control floors protect electronic components, explosives, and high-speed computers from damage caused by static electricity. ESD flooring is part of a system. Choices should always be based on objective, researched evidence. When you partner with us, we look at all possible items that may need to integrate with the floor, and, focusing on your goals and objectives, help you find the right floor for your application.
