Voltage Protection Matting for
Electrical Safety

Voltage Protection Matting for Electrical Safety

Switchboard Matting from the electrical experts at StaticWorx

Switchboard Matting from the electrical experts at StaticWorx

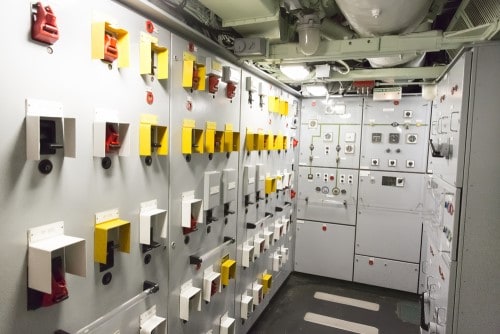

StaticWorx Switchboard rubber matting protects workers from electrical shocks generated by high-voltage equipment, such as fuse boxes, control panels, generators, and transformers.

Unlike other StaticWorx products, our Switchboard mats are not conductive. The matting is insulative – with no static control properties. Insulative mats, designed for safety, inhibit the flow of electricity from high-voltage equipment and prevent transfer of electricity to workers.

Our Switchboard matting meets ANSI ASTM D-178, and has dielectric resistance to 30,000 volts.

What is dielectric strength?

According to Science Direct:

Dielectric strength is defined as the electrical strength of an insulating material. In a sufficiently strong electric field the insulating properties of an insulator breaks down allowing flow of charge. Dielectric strength is measured as the maximum voltage required to produce a dielectric breakdown through a material.

Switchboard Matting: Military-Grade

StaticWorx Switchboard Matting is also available in military specification grade MIL-DTL-15562, used by the U.S. Navy.

Military Electrical-Grade Vinyl Switchboard Matting

Military electrical-grade switchboard matting is manufactured with a combination of flame retardants and smoke suppressants to meet stringent flame and smoke density standards required for MIL-DTL-15562G specification. StaticWorx Mil Grade Matting is approved for use by all subordinates of the Department of Defense, including the U.S. Navy.

Why StaticWorx?

StaticWorx understands electricity. The StaticWorx management team has over forty years of experience working with conductive and non-conductive matting from both rubber and vinyl. Our manufacturing team tests every production batch to confirm the margin of safety and we permanently imprint test results on the back of every Switchboard mat.

Verified for Dialectric Resistance to 30,000 VAC

StaticWorx Switchboard matting is verified for dielectric resistance to 30,000 VAC per ASTM D-178. Our manufacturing team performs extreme testing on every production batch to confirm that our formula delivers a higher margin of safety. Matting is branded on back per ASTM specification.

ASTM D-178

If you are located in the U.S., the standard for electrical switchboard matting is ANSI/ASTM D-178. This Quality Standard set up by the American Society for Testing and Materials assesses the quality of switchboard matting and issues certificates of compliance.

When you purchase ASTM D-178-marked switchboard matting, you get fully compliant, high-performing, quality electrical insulating mats.

ASTM D178 – 19:Standard Specification for Rubber Insulating Matting

Key Benefits

Insulative

Insulative mats inhibit the flow of electricity generated by high-voltage devices

Protects Workers

Current can leak from high-voltage equipment, putting workers at risk of dangerous electrical shock. Switchboard matting insulates them, stopping the transfer of electricity.

Safe for use around high-voltage equipment

  • Meets safety standards for use around high-voltage equipment
  • Interrupts electrical path to ground

Insulative

Insulative mats inhibit the flow of electricity generated by high-voltage devices

Protects Workers

Current can leak from high-voltage equipment, putting workers at risk of dangerous electrical shock. Switchboard matting insulates them, stopping the transfer of electricity.

Safe for use around high-voltage equipment

  • Meets safety standards for use around high-voltage equipment
  • Interrupts electrical path to ground

High-performance

Dielectric resistance to 30,000 volts

Meets Industry Standards

  • Complies with ANSI/ASTM D-178
  • ASTM test results permanently imprinted on back of mats

Heavily Tested

Our manufacturing team tests every production batch to confirm margin of safety

Available in military-grade

StaticWorx military-grade switchboard matting is approved for use by all subordinates of the Department of Defense, including the U.S. Navy.

High-performance

Dielectric resistance to 30,000 volts

Meets Industry Standards

  • Complies with ANSI/ASTM D-178
  • ASTM test results permanently imprinted on back of mats

Heavily Tested

Our manufacturing team tests every production batch to confirm margin of safety

Available in military-grade

StaticWorx military-grade switchboard matting is approved for use by all subordinates of the Department of Defense, including the U.S. Navy.

Applications

Information and Downloads

  • Switchboard Specifications
  • Switchboard Military Grade Specifications

Product SpecificationShadowFX™ Vermont Slate
Country ManufacturedUnited States
Static Control FiberContinuous Static Dissipative
StaticWorx® 44 denier helix fiber.
Yarn SystemPost-consumer content
Type 6, 6 branded nylon
Yarn ManufacturerUniversal
Total Recycled Content63%
  Post-Industrial61%
  Post-Consumer2%
Yarn ConstructionTufted textured loop
Dye Method100% Solution Dyed
Dye LotsMergeable
Manufacturing ProcessTufted
Gauge1/12 in
Tufted Stitches Per Inch9.0/in
Tufted Pile Height0.13 in
Tufted Yarn Weight17 oz/yd2
Pile Thickness0.071 in
Pile Density8,620 oz/yd3
Fiber Modification Ratio1.7 to 1.9
Tile Size50 cm x 50 cm (19.69" x 19.69")
Available in 24" x 24"
Radiant PanelClass 1 (ASTM E 648) passes
Smoke Density≤ 450 (ASTM E 662)
FlammabilityPasses Methenamine Pill Test
(DOC-FF1-70)
Lightfastness≥ 4.0 @ 60 AFUs (AATCC 16 - E)
Dimensional StabilityAACHEN Din 54318 < . 10%
Traffic ClassificationHeavy
Soil Stain ProtectionProtekt
Preservative ProtectionIntersept®
Preservative Efficacy(AATCC 174 Parts 2&3) 99% Reduction/
No Mold 7 Days
(ASTM E-2471) Complete Inhibition
Electrostatic Propensity< 0.4 kV (AATCC 134-1996)
Tested at 12% relative humidity at 20°C and 70°F.
Glue-free InstallationsUse GroundBridge™ underlayment
with Interface TacTiles®
CrockfastnessAATCC Test Method 165 Minimum stain
rating on International Grey Scale of
not less than 5 wet and dry.
Atmospheric FadingAATCC Test Method 129
Ozone/AATCC Test Method 23,
Burned Gas shall not be less than 3
on International Grey Scale
after two cycles on each test.

CompositionPrecision milled vinyl tile of high density resin with a conductive carbon matrix. Pre-consumer recycled content > 10%.
Electrical PerformanceLifetime Warranty
Free from defects in
workmanship and materials
Lifetime Warranty
Sizes12” x 12”
(24” x 24”, 36" x 36" available as custom sizes)
MaintenanceNo wax
Adhesive and Spread RateCovers approx. 180 - 220 sq. ft/gal
Gauge3.0 mm
Grounding Material (Supplied with order)One 2”x 24” copper strip installed every 1,000 ft
Trowel Sizes1.6 x 1.6 mm (1/16”x 1/16”) Square Notch
with 1.6 mm (1/16”) Flats

Further Reading

The property of “insulation” refers to a material’s ability to store as opposed to conduct electrical current… An insulator is the opposite of a conductor.

Regular—non-ESD—floors are insulative. Insulative materials stop or resist the flow of electricity, and cannot be grounded. With no pathway to ground, static charges stay in place, on the surface of the floor.
