When specifying ESD flooring for mobile equipment in electronics manufacturing, aerospace, defense, semiconductor, and other high-reliability environments, electrical resistance is an essential performance consideration. But resistance measurements alone may not tell the whole story—particularly when carts, rolling workstations, conductive chairs, and automated equipment are part of the operation.
The reason comes down to something surprisingly small: the actual contact area between a conductive caster and the floor.
A flooring system may meet established resistance requirements while still providing inconsistent electrical contact with mobile equipment. Understanding this distinction can be especially important in mission-critical facilities where sensitive electronic assemblies are routinely transported across the production floor.
The Difference Between Testing an ESD Floor and Grounding a Caster
The standard ANSI/ESD STM7.1 resistance test uses a five-pound conductive electrode to measure the electrical resistance of an ESD flooring material.
The electrode has an approximate floor contact area of 31 cm².

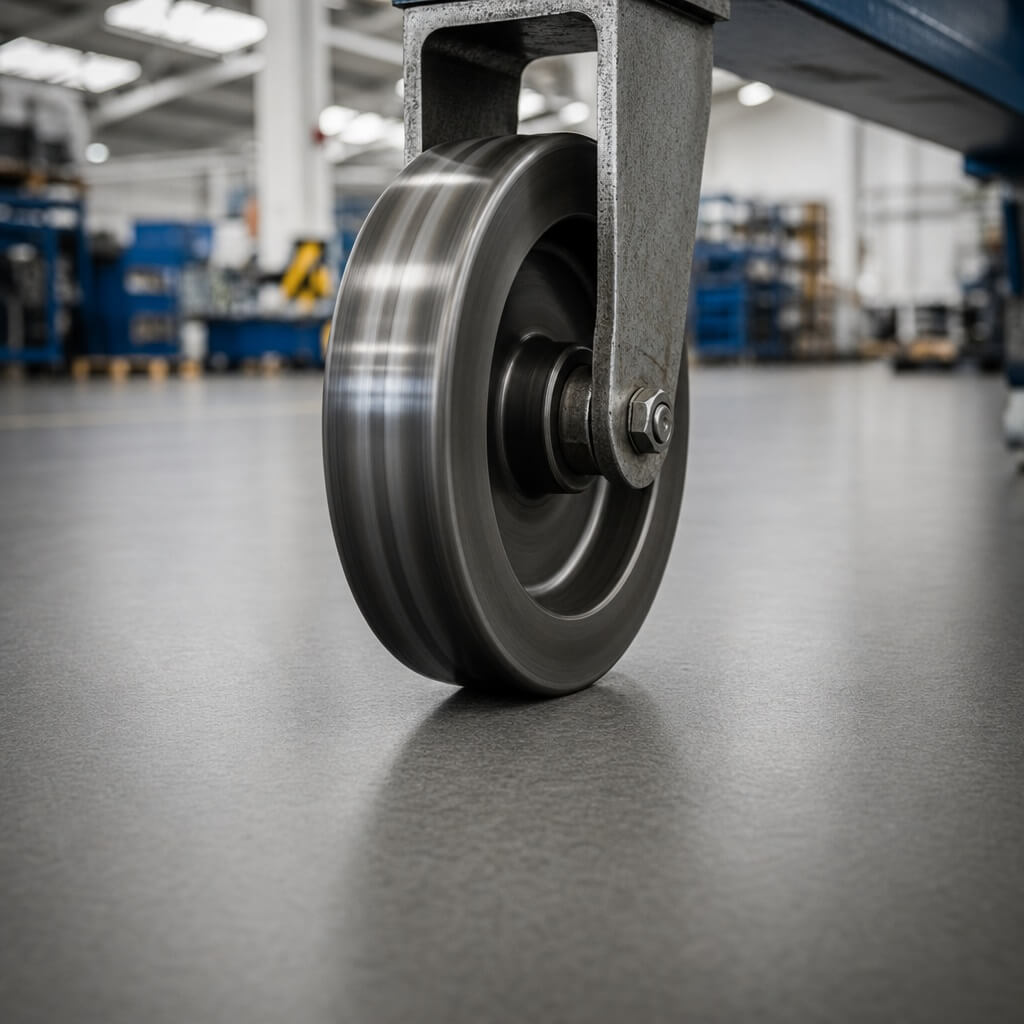

A conductive caster on a cart, chair, workstation, or piece of automated equipment, however, may contact only about 1 cm² of the floor.
That is a significant difference.
The standard resistance test provides valuable information about the electrical properties of the flooring material. But it was not designed to determine whether every small caster or glide will reliably encounter a conductive pathway as equipment moves throughout a facility.
If a flooring system relies on isolated conductive particles or widely spaced conductive pathways, a small caster can potentially land on an area without sufficient conductive contact.
In other words, a floor can meet resistance requirements without necessarily providing consistent grounding for every piece of mobile equipment under real-world operating conditions.
For more information on how StaticWorx evaluates flooring performance, visit the ESD Flooring Testing resource center or explore StaticWorx ESD standards and technical specifications.
Why Conductive Pathway Distribution Matters for ESD Flooring for Mobile Equipment
For environments that depend heavily on conductive casters, engineers should consider not only whether a floor is conductive, but also how conductivity is distributed across its surface.
A dense, uniformly distributed conductive network offers an important advantage: redundancy.
Rather than relying on a limited number of isolated conductive points, a flooring system with conductive pathways distributed throughout the wear surface increases the likelihood that footwear, casters, glides, carts, chairs, and other mobile equipment will make electrical contact with the conductive network.
This approach reduces dependence on any single conductive pathway and creates a more robust electrical interface between the flooring system and the equipment operating on it.
For DOD electronics manufacturing, aerospace, microelectronics, semiconductor production, and other high-reliability applications, that distinction can be critical.
How GroundLock® Extreme Platinum Addresses Mobile Equipment Grounding
GroundLock® Extreme Platinum was engineered with an increased density of conductive pathways for ultra-sensitive environments, including applications involving small casters, carts, chairs, and sensitive equipment.
The objective is to create a highly uniform conductive network instead of relying on widely spaced conductive chips or isolated conductive pathways.
This architecture minimizes localized variations in conductivity while increasing the probability of electrical contact between the floor and:
- Conductive footwear
- Casters and wheels
- Chair glides
- Material-handling carts
- Mobile workstations
- Automated equipment
The result is ESD flooring for mobile equipment designed around how equipment actually interacts with the floor—not simply how the flooring material performs beneath a large test electrode.
Reducing Fragility in the ESD Grounding System
In this context, “fragility” does not refer to the physical strength of the flooring.
It refers to an electrical system that depends on relatively small or isolated conductive pathways being in exactly the right place to establish contact.
When a caster has only a fraction of the contact area of the electrode used to test the floor, the distribution of those pathways becomes increasingly important.
GroundLock Extreme Platinum distributes conductive pathways throughout the wear surface to increase the probability of maintaining continuous electrical contact during normal operating conditions.
For facilities moving high-value electronic assemblies on carts, mobile workstations, rolling chairs, or automated equipment, grounding reliability should therefore be considered a functional system characteristic in addition to conventional floor resistance.
ESD Performance Is Only Part of the Equation
Mission-critical manufacturing environments place considerable mechanical demands on flooring as well. Heavy equipment, rolling loads, forklifts, pallet jacks, carts, environmental changes, and continuous production can all affect long-term flooring performance.
GroundLock Extreme Platinum incorporates additional engineering characteristics intended for these demanding environments.
Fiberglass-Reinforced Structural Stability
The GroundLock platform uses fiberglass reinforcement to provide dimensional stability and help maintain floor flatness, tight joints, and long-term electrical continuity under changing environmental conditions and heavy industrial loading.
Maintaining the physical integrity of an ESD flooring installation is particularly important because movement or separation between tiles can eventually affect more than appearance—it can affect the continuity of the overall flooring system.
High-Strength Interlocking System
The interlocking system is designed to withstand repeated stresses from:
- Forklifts
- Pallet jacks
- Rolling chairs
- Carts
- Heavy equipment
- Movement of large assemblies
Maintaining mechanical engagement helps preserve both the physical integrity and long-term electrical continuity of the installation.
Body Voltage Performance for Sensitive Electronics Environments
Controlling resistance is ultimately a means to an end: preventing damaging electrostatic charge from accumulating on personnel and equipment.
Testing referenced for GroundLock Platinum measured body voltages of less than 10 volts when used with approved ESD footwear.
For comparison, ANSI/ESD STM97.2 establishes a 100-volt limit.
For facilities handling increasingly sensitive electronic components, evaluating the complete person-footwear-floor system can provide a more meaningful picture of ESD performance than evaluating floor resistance in isolation.
You can learn more about applicable testing methods and compliance requirements in StaticWorx’s ESD standards and testing resources.
Extremely Low VOC Emissions
ESD performance and durability aren’t the only considerations when selecting flooring for a high-reliability facility. Indoor environmental quality can also be an important design requirement.
Independent emissions testing of GroundLock measured total volatile organic compound (TVOC) emissions of less than 10 µg/m³ after 28 days.
That low-emission profile makes the flooring particularly relevant for environments such as:
- DOD and aerospace facilities
- Semiconductor manufacturing
- Electronics manufacturing
- Laboratories
- Pharmaceutical facilities
- Other controlled or mission-critical environments
StaticWorx identifies GroundLock Extreme Platinum as an option for Class-0 electronics manufacturing, semiconductor facilities, advanced electronics assembly, testing and calibration environments, aerospace and defense applications, and sensitive R&D laboratories.
Conductivity Without Wax or Topical Coatings
GroundLock’s conductive properties are engineered directly into the flooring material rather than relying on routine applications of conductive wax or finish to maintain its intended performance.
That can simplify maintenance while eliminating one potential variable in long-term ESD performance.
For facilities that need ESD flooring for mobile equipment, this is especially valuable because the flooring surface must continue supporting reliable electrical contact through everyday traffic, cleaning, and material handling.
Look Beyond the Resistance Number
Resistance remains an essential measurement when evaluating an ESD flooring system. But for facilities where sensitive electronics and mobile equipment coexist, it should not be the only consideration.
The more important question is:
How will the entire flooring system perform under actual operating conditions?
That means considering conductive pathway distribution, caster contact, body-voltage generation, structural stability, joint integrity, maintenance requirements, and long-term electrical performance together.
GroundLock® Extreme Platinum was engineered around this systems-based approach. Its increased conductive density, structural stability, interlocking design, low body-voltage performance, low VOC emissions, and maintenance advantages make it particularly well suited for DOD, aerospace, semiconductor, electronics manufacturing, and other high-reliability applications.
You can also compare GroundLock with other conductive ESD flooring options from StaticWorx or explore the full range of ESD flooring solutions by application.
When the cost of an ESD event can far exceed the cost of the floor itself, reliable grounding should be engineered into the entire flooring system—not left to chance at the point where a caster meets the floor.
