Alabama Power control room. Vermont Slate.

ShadowFX Static-dissipative (SD) Carpet Tile: Vermont Slate

Built to withstand heavy traffic and abuse and designed to address the most stringent static control requirements – making Vermont Slate ideal for any application from electronics manufacturing to labs to 24/7 critical environments

StaticWorx Vermont Slate carpet-tile collection provides the durability and high performance you expect from StaticWorx floors in a design that transports you to the mountains of Vermont. Warm, monochromatic earth tones promote a peaceful environment, inspiring creativity and a sense of wellbeing and connectedness.

The rock-like etchings in our Vermont Slate carpet tiles flow seamlessly across the surface of the floor in a non-directional or monolithic installation. Merge-ability enables mixing dye lots and saves money by allowing you to add new or replace worn or damaged tiles without worrying about dye lot compatibility.

ShadowFX ESD carpet tile is made by an industry leader in the development of flooring made using recycled materials and 100% Carbon Neutral for the total life cycle.

Key Benefits

Vermont Slate Meets Electrical Standards for the Following Environments:

  • Controlled electrical properties provide electrical safety without compromising static-control performance.
  • Electronics handling environments: ANSI/ESD S20.20.
    • Resistance: 1 x 10E6– 1 x 10E8: ANSI/ESD S7.1, ANSI/ESD 97.1
    • Voltage generation < 100 volts: ANSI/ESD 97.2
  • Air traffic systems: FAA.STD 019f.
  • Equipment rooms, telecommunication areas, and dispatch centers: Motorola R56
  • Network operator equipment areas: ATIS-0600321.
  • Healthcare facilities: NFPA 99.

At < 100 volts, Vermont Slate meets the static-protection requirements for charge generation for all Classes of ESD-Sensitive components and assemblies:

Class 0< 250 volts
Class 1A250 volts to < 500 volts
Class 1B500 volts to < 1,000 volts
Class 1C1,000 volts to < 2,000 volts
Class 22,000 volts to < 4,000 volts
Class 3A4,000 volts to < 8,000 volts
Class 3B> 8,000 volts

ESDS Component Sensitivity Classification for the Human Body Model (Per ESD-STM5.1)

Convenient and Cost Effective

  • Non-directional design eliminates the hassle of matching patterns and dye batches, and hides wear and tear—the main cause of carpet tile replacement – resulting in significant savings.
  • Installed with releasable adhesives – allowing for easy removal of individual tiles, No need to remove rolls of broadloom – significantly reduces installation waste.
  • Glue-free option, using TacTiles, means carpet can be installed without disrupting critical 24/7 operations.
  • Can be installed non-directionally, making it ideal for raised access floors.
  • Mergeable dye lots allow you to replace tiles without concern for matching lots
  • Slight variations are listed under Additional Specifications

Visually Appealing

  • Unique design patterns use biomimicry to simulate the random beauty of nature.
    • Promotes calming effect
  • Non-directional design and mergeable dye lots allow easy tile replacement and mask wear, providing long-lasting aesthetic appeal.

Sustainable, Durable, Reliable

  • Contains almost 50% recycled content and has low-emitting material.
  • May qualify for LEED (Leadership in Energy and Environmental Design) credits.
  • 100% of yarn bundles are wrapped with Helix 44 denier static-control fiber.
  • Withstands over 100,000 cycles of Phillips roller caster chair test.
  • Fibers rated at < 2.0 Modification Ratio
  • Lifetime warranty for static control.
  • Made in America.
Inspiration for Vermont Slate Carpet Tile:

No Vermont property is complete without a mud room.



Extreme changes in weather—with over 100 inches of snow each winter followed by a spring thaw that turns Vermont’s 8000 miles of unpaved roads into sludge—present challenges to the entry of any home or place of business. Which is why entry floors in Vermont are so often covered in slate. Tough, durable and attractive, slate stands up to ice, snow and mud, while offering the inviting appeal of a Vermont farmhouse—much like our Vermont Slate carpet tile.



Like all StaticWorx ShadowFX™ carpet tile collections, our sustainable, aesthetically pleasing Vermont Slate carpet tile also meets the most stringent ESD standards—with electrical resistance in the static-dissipative range required for end-user spaces, making it the ideal choice for 24/7 critical environments.



From 5 Reasons to Put Vermont Slate on Your ESD Flooring Short List for 24/7 Critical Environments

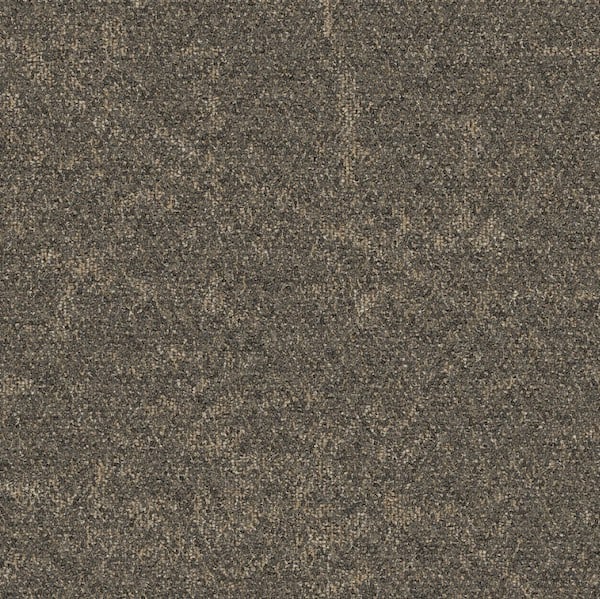

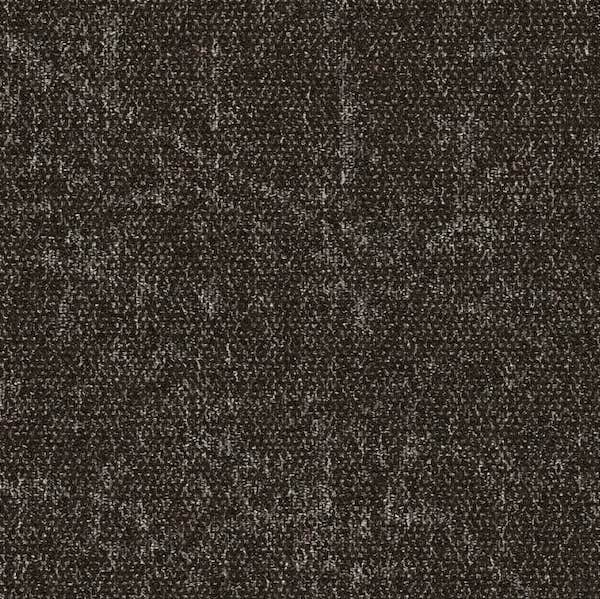

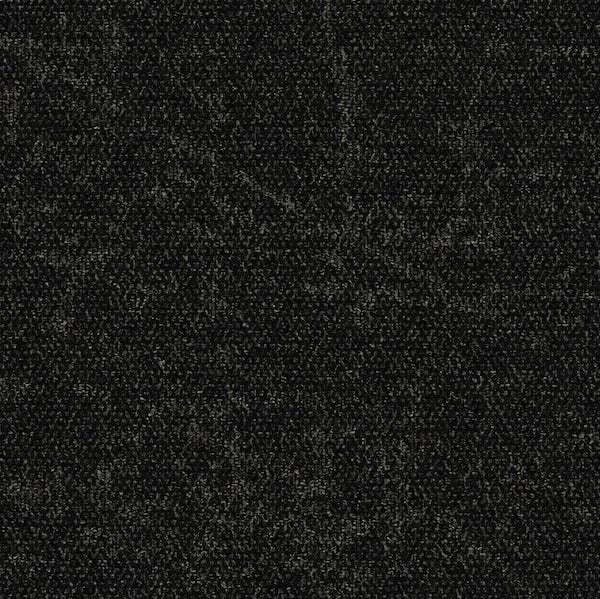

Available Styles

Note: Material colors should not be selected based solely on computer images:

Actual product colors may vary from the way colors display on your monitor. Before making selections, verify the color by ordering a sample from our site. Colorways used in random non-directional ESD carpet styles such as ShadowFX Patterns, Cubic, Peaks, Fields and Stone, and Vermont Slate vary from tile to tile. This is intentional and allows for non-directional installation. If you have any questions, please call: 617-923-2000 Or send an e-mail to [email protected]

Standard Size: 50cm x 50cm (19.6″ x 19.6″)
Available in 2’ x 2’ for one-to-one access floor installation

Installation: Monolithic


Non-Directional

Partial image of Dave holding an ohmmeter. At the bottom, the series title Static Shorts with StaticWorx displays along with the logo in a blue box. Below that in a gray blue box is the episode title in white 'Low kV is Not Static Free'
Play Video
Image shows some of the steps of grounding as ESD floor as a background. The title How to Ground an ESD Floor is displayed in bold white text against a rectangle of dark blue grey at the bottom of the image and and the Staticworx logo below
Play Video
Background image shows a close up of an ohmmeter. The title ESD Flooring: Why Some Carpet Cannot Be Grounded is displayed in bold white text against a rectangle of dark blue grey at the bottom of the image and just above is the text "Static Shorts with StaticWorx - Right from the Den" and the StaticWorx logo
Play Video
Background image is an illustration of an ohmmeter and two probes. In the foreground at the bottom are two boxes. The top is a bright blue and includes the StaticWorx logo. The second is a dark blue-gray and includes the text in white: "Conductive Versus Dissipative: Does It Matter?"
Play Video

Further Reading

Mission-critical spaces must operate 24/7. ESD can disrupt data and damage or destroy equipment. Learn how to protect your space against static discharge.
In this hub, you’ll find all the info you need to specify and select the right ESD floor. Download our FREE comprehensive Guide to ESD Flooring Selection!
What is ESD Flooring? Our primer explains what it is, how it works, and how to make sure you choose the best ESD floor for your application and environment.

In this hub, focused specifically on installation and maintenance, you’ll find accurate information on grounding, installing, and maintaining ESD flooring.

ShadowFX Static-dissipative (SC) Carpet Tile Collections

Carpet Tile for Access Flooring Applications

Looking for easy installation of Staticworx ESD Carpet Tile over your bare access floor panels?


ShadowFX SDC with TacTiles® is your solution.


  • Installation economy – no adhesive required
  • Guaranteed to meet all ESD standards for any application
  • ShadowFX carpet tiles with dissipative backing are grounded upon contact with metal panels Carpet tiles are easily lifted and replaced
ShadowFX Solids

With its simple, subtle texture and diversity of color options, Shadow FX SDC Solids is a popular choice for many styles of interior. It’s also ideal for mixing and matching with other Shadow FX SDC carpet tiles, to create accents, inserts, borders or checkerboard effects – a really useful, versatile tool for designers.


ShadowFX Patterns and Cubic Collections

After two or three years of use, carpet tiles exposed to chair casters and heavy traffic used to be prone to pile crush, making them look different from adjacent tiles. The main factor contributing to this problem was the pattern designs used in typical ESD carpet tile. All of these systems were either a solid pattern with slightly mottled colors or linear patterns with directional lines. Because carpet tiles appear seamless, like one large continuous floor, worn areas would stick out like a coffee stain on a white shirt.



The solution: Learning from nature.



Based on biomimicry – the study and imitation of nature’s best ideas to solve human problems – Staticworx ShadowFX static-dissipative (SD) carpet tiles mimic the organic design of nature. Tiles vary in patterns and colors within one style and colorway – all but eliminating the ability to observe pile crush or other forms of wear between tiles.



Because there’s no need to worry about matching dye lots, you need less attic stock and selective replacement is more effective. Replacement tiles are almost indistinguishable from older – original – tiles in the same installation.



Non-directional Installation for Less Installation Waste



ShadowFX SDC Patterns and Cubic Collections offer the added benefit of non-directional installation, meaning that tiles can be laid in any order or orientation. With no set pattern to maintain and no need to align tiles in a certain direction, there is significantly less installation waste. In fact, the average ShadowFX non-directional installation produces only 1.5% waste versus an average of 14% for other carpet styles. That means more of your floorcovering investment is on your floor, not in a dumpster.



And the best part, ShadowFX carpet tiles can be installed without glue, as a floating floor over any hard surface.




ShadowFX SDC Treez Collection

Simplicity Meets Style


Treez, our latest ShadowFX carpet tile collection, marries timeless style with the simplicity in nature. Tufted, textured loop construction adds dimension, creating a look as natural and stately as the bark on a tree. As appealing and comfortable in an uptown financial services space or high-tech lobby as in a workhorse application such as a data center or manufacturing facility.


ShadowFX SDC Parks Series

In sophisticated tones with threads of complementary colors in varying widths, our Parks Series carpet tile puts an earthy twist on classic linear design. A low-profile face uses less material for a tailored, upscale aesthetic.


ShadowFX SDC Peaks Collection

Like the stately summits of Vermont, our Peaks series carpet tile combines natural beauty with zen-like tranquility. Elegant in pattern and texture, with colorways in both warm and cool tones, our Peaks collection gives you a floor with dimension, functionality, and character.


ShadowFX SDC Fields & Stone Collection

Humans instinctively crave a connection to nature. Time spent in holistic places like Vermont provides a sense of comfort and wellbeing while promoting physical and mental health.


Inspired by the natural world, our ShadowFX Vermont Fields and Stone Carpet Tile Collection brings nature into the workspace, evoking feelings of serenity and refuge. A fusion of organic design and neutral color palette makes this dynamic collection as ideal for urban as for country or rural environments.


ShadowFX SDC Chenille Warp Carpet

ShadowFX SDC Chenille Warp Carpet is a tufted patterned level tip-sheared pile carpet tile, with SD backing. The pile material is made from recycled solution-dyed nylon. The fundamental aesthetic of Chenille is stripes which have been interpreted in a bold and textural way without relying on heavy face weight. Shadow FX Chenille Warp is available in colorways. The tiles can be installed in a variety of ways including quarter-turn, ashlar, brick fashion and parquet, with the potential to provide an unconventional appearance.


ShadowFX SDC Furrows II Carpet Tile

Linear precision, softened by texture and offset shapes.


As its name suggests, Furrows II has a resilient patterned loop pile carpet, reflecting the linear regularity of ploughed fields. Its textured, structured loop pile creates the three-dimensional impression of an aerial view of a cultivated landscape.


Designed for heavy contract performance, ShadowFX Furrows II maintains its distinctive appearance even in high-traffic areas. Pile yarn and backing contain pre-consumer recycled material, minimizing environmental impact.


Vermont Planx™

ShadowFX™ Planx offer a more expressive visual vocabulary.


Our 25cm x 1m Shadow FX ESD Planx bring new proportion and scale to carpet tile, giving you power to create fresh, exciting floor designs. The scale and directionality of Shadow FX ESD Planx creates floors that better reflect the geometry and flow of the surrounding space.


Planx or squares, our tiles all work together.


Use square tiles with contrasting Skinny Planks for large-scale tile patterns, provide wayfinding cues, or for work and activity zones. And this is just the beginning!


StaticWorx modular carpet tile and Planx work together in any combination, giving you a carpet tile design platform with unparalleled options.


A shape that’s better at hiding seams.


Want the benefits of carpet tile without the look of carpet tile? Use Shadow FX ESD Planx, same style and color, laid in an ashlar pattern. They’ll blend near seamlessly across the floor, giving you the benefits of modularity and the continuous look of broadloom.


A soft hard surface.


Love the look of wood plank flooring? Think luxury vinyl plank flooring is stunning? Patterns—like herringbone or ashlar—give ShadowFX Planx the visual appeal of other plank floors, with the patterning possibilities. You also get a floor covering that’s soft, quiet and much more economical than hard surfaces.
